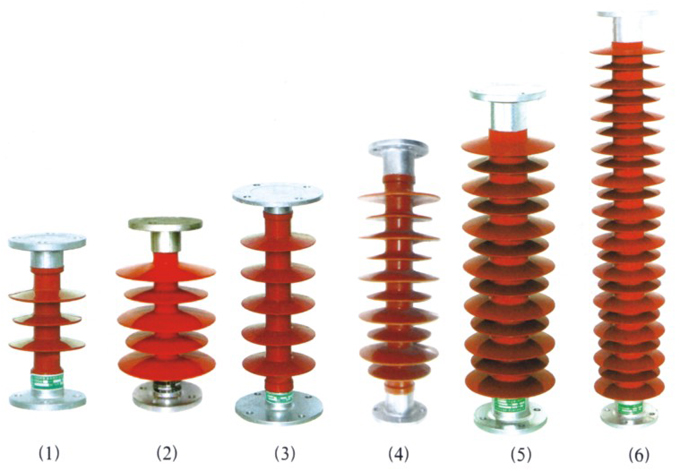

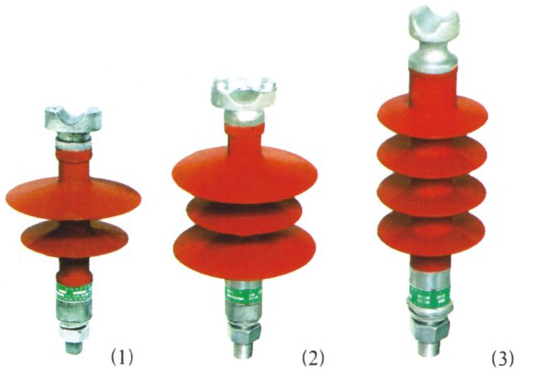

Composite Insulator

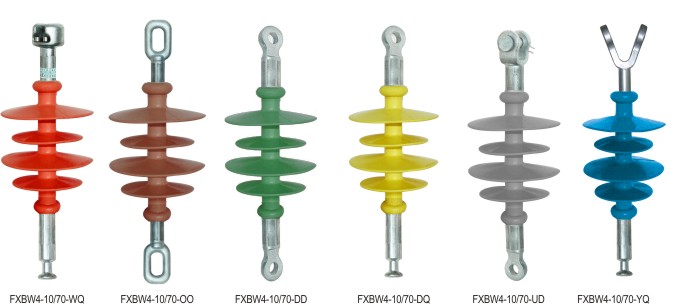

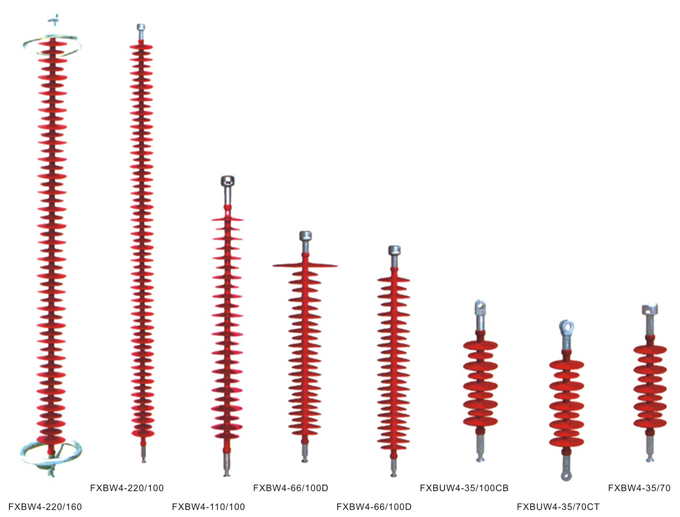

Suspension Type Insulators

Product description:
INQUIRY

Product introduction:
This product uses the standard ball and socket joint structure, high tensile strength, suitable for heavy pollution, large span high voltage line.

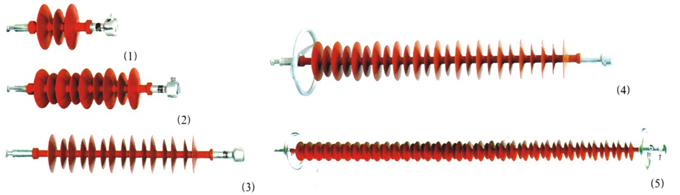

Rated mechanical load (kN)	The height of the structure (mm)	Minimum arcing distance (mm）	Minimum arcing distance (mm)	The diameter of umbrella (mm)	The lightning impulse withstand voltage (peak) (kV)	1min power frequency withstand voltage (kV)	Drawing number
70	400±10	200	480	148/118	75	42	Figure 1
100	400±10	200	480	148/119	75	42	Figure 1
70	610±15	450	1015	148/120	230	95	Figure 2
100	650±15	450	1015	148/121	230	95	Figure 2
70	870±15	700	1900	148/122	410	185	Figure 3
100	940±15	700	1900	148/123	410	185	Figure 3
100	1240±15	100	3150	148/124	550	230	Figure 4
100	2240±30	1900	6300	148/125	1000	395	Figure 5

Suspension type insulator in use, can be as struvite accumulation caused by flashover accident, even lead to islanding, a large umbrella skirt structure, can effectively avoid the other umbrella skirt and equalizing ring is polluted, the eradication of such things to help potential, with an accompanying increase in the insulator in the north and high cold snow area anti ice flashover ability. When the route and direction is greater than 45 degrees, the wire is easy to produce dancing, a threat to the safe operation of power system. The suspension insulator equalizing ring designed to hammer structure can be improved at the same time, the end of the electric field distribution, reduce the natural frequency and the peak transverse vibration insulators effectively, is suitable for the strong wind region and the northwest Valley air outlet used.
