Composite Suspension Rod Anti Tension Insulators

Product description:
INQUIRY

Composite tension insulator for polluted areas, especially in heavy pollution area, its high tensile strength, good antifouling performance, convenient installation and use, the connecting structure using a variety of hardware, and the lines connected compact.

The main dimensions and mechanical properties:

The product model	Rated voltage (kV)	Rated mechanical tensile load (kN)	The height of the structure (mm)	Insulation distance （mm）	The minimum nominal creepage distance (mm)	The lightning impulse withstand voltage (peak) (kV)	1min power frequency withstand voltage (effective) (kV)
FXBW4-1/70-XX	1	70	300	110	280	30	7
FXBW4-6/70-XX	6	70	340	150	360	60	25
FXBW4-10/70-XX	10	70	380	200	480	95	45
FXBW4-15/70-XX	15	70	420	240	600	110	60
FXBW4-20/70-XX	20	70	460	290	720	130	70
FXBW4-24/70-XX	24	70	460	290	720	150	75
FXBW4-28/70-XX	28	70	640	335	840	180	85
FXBW4-33/70-XX	33	70	680	380	960	205	90
FXBW4-35/70-XX	35	70	680	380	960	230	95

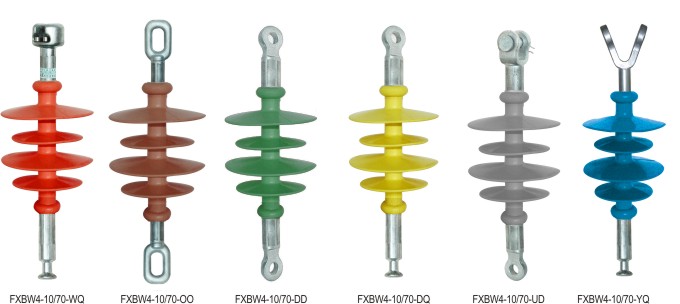

Note: the additional letter -XX said: products, hardware structure (W- ball, Q- ball, U- binaural, monaural type Y-Y, D-, O-O ring, L- represents the both ends of the connecting fittings at a 90 degree angle; the default is parallel, T said the first large umbrella umbrella
