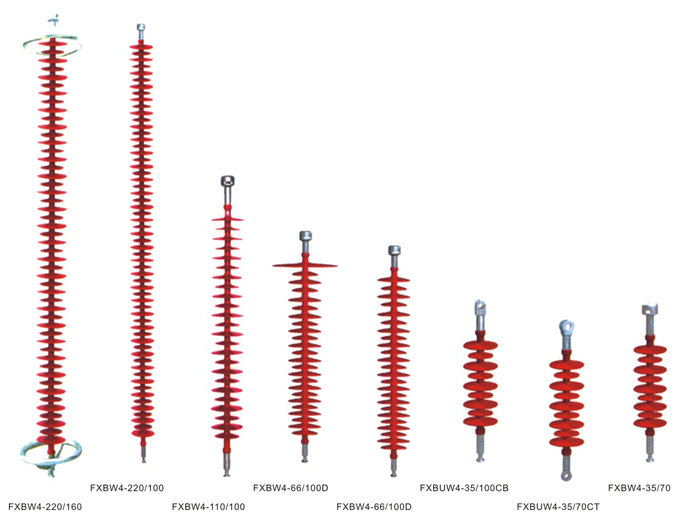

The main dimensions and mechanical properties:
|
The product model
|
Rated voltage
(kV) |
Rated mechanical tensile load
(kN) |
Connect structure
|
The height of the structure
(mm) |
Minimum arcing distance
（mm） |
The minimum nominal creepage distance
(mm) |
The lightning impulse withstand voltage (peak)
(kV) |
1min power frequency withstand voltage
(kV) |
Equalizing ring (a)
|
|
FXBW6-10/70
|
10
|
70
|
16
|
380±15
|
190
|
480
|
115
|
45
|
NoN/A
|
|
FXBW4-35/70
|
35
|
70
|
16
|
650±15
|
470
|
1280
|
230
|
95
|
NoN/A
|
|
FXBW4-35/100
|
36
|
100
|
16
|
670±15
|
450
|
1260
|
230
|
95
|
NoN/A
|
|
FXBW4-66/70
|
66
|
70
|
16
|
940±15
|
700
|
1900
|
410
|
185
|
NoN/A
|
|
FXBW4-66/100
|
66
|
100
|
16
|
940±15
|
685
|
1870
|
410
|
185
|
NoN/A
|
|
FXBW4-100/70
|
110
|
70
|
16
|
1240±15
|
1035
|
3180
|
550
|
230
|
Agreement
|
|
FXBW4-110/100
|
110
|
100
|
16
|
1240±15
|
1015
|
3150
|
550
|
230
|
Agreement
|
|
FXBW4-220/100
|
220
|
100
|
16
|
2240±15
|
1950
|
6300
|
1000
|
395
|
Agreement
|
|
FXBW4-220/160
|
220
|
160
|
20
|
2240±15
|
1950
|
6300
|
1000
|
395
|
Agreement
|
|
FXBW4-330/100
|
330
|
100
|
16
|
2930±15
|
2550
|
9075
|
1425
|
570
|
Agreement
|
|
FXBW4-330/160
|
330
|
160
|
20
|
2990±40
|
2600
|
9075
|
1425
|
570
|
Agreement
|
|
FXBW4-500/160
|
500
|
160
|
20
|
4450±15
|
4000
|
13750
|
2250
|
740
|
Agreement
|
