Heat Shrinkable Cable Accessaries

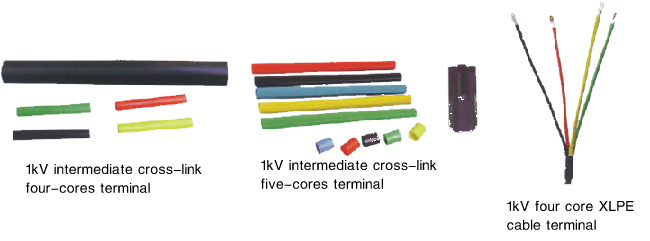

  • Heat Shrinkable Power Cable Terminal Head and middle joint
Heat Shrinkable Power Cable Terminal Head and middle joint

Heat Shrinkable Power Cable Terminal Head and middle joint

Product introduction:

Applicable to 0.6/1KV polyethylene, cross-linked polyethylene, rubber insulated single core, two core, three core, four core, five core, power cable.

Project
Company
Parameters
Hardness
Shore A
85
Tensile strength
Mpa
10
Elongation at break
%
300
Breakdown strength
KV/mm
20
Power frequency withstand voltage
KV
2.5
The shrinkage temperature
℃
120-130
Radial shrinkage
%
250
Length contraction
%
±5



Product name
Model
The application of cable cross-sectional area（mm2）
Two core cable terminal head
SY-1/2.0
SY-1/2.1
SY-1/2.2
SY-1/2.3
10-16
25-50
70-120
150-240
Three core cable terminal head
SY-1/3.0
SY-1/3.1
SY-1/3.2
SY-1/3.3
12-16
25-50
70-120
150-240
Four core cable terminal head
SY-1/4.0
SY-1/4.1
SY-1/4.2
SY-1/4.3
10-16
25-50
70-120
150-240
Five core cable terminal head
SY-1/5.0
SY-1/5.1
SY-1/5.2
SY-1/5.3
10-16
25-50
70-120
150-240
Two core cable intermediate joint
JSY-1/2.0
JSY-1/2.1
JSY-1/2.2
JSY-1/2.3
10-16
25-50
70-120
150-240
Three core cable intermediate joint
JSY-1/3.0
JSY-1/3.1
JSY-1/3.2
JSY-1/3.3
10-16
25-50
70-120
150-240
Four core cable intermediate joint
JSY-1/4.0
JSY-1/4.1
JSY-1/4.2
JSY-1/4.3
10-16
25-50
70-120
150-240
Five core cable intermediate joint
JSY-1/5.0
JSY-1/5.1
JSY-1/5.2
JSY-1/5.3
10-16
25-50
70-120
150-240



The cotter pin is stainless steel, the other parts are hot-dip galvanized steel.
