The product model
|
Rated voltage
(kV) |
Rated mechanical load(kN)
|
The height of the structure
(mm) |
Insulation distance
(mm) |
The minimum nominal creepage distance
（mm） |
The diameter of umbrella
（mm） |
The lightning impulse withstand voltage (Feng Zhi)
(kV) |
1min power frequency withstand voltage (effective)
(kV) |
Drawing number
|
|
FS-10/5
|
10
|
5
|
250
|
180
|
380
|
90
|
75
|
42
|

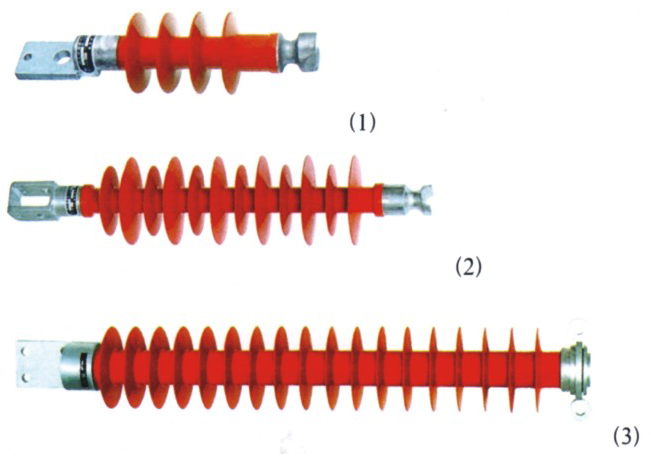

Figure 1
|
|
FSW-35/5
|
35
|
5
|
645
|
490
|
1460
|
145/115
|
265
|
95
|
Figure 2
|
|
FS-110/10
|
110
|
10
|
1260
|
1100
|
3150
|
170
|
550
|
230
|
Figure 3
|
