Heat Shrinkable Cable Accessaries

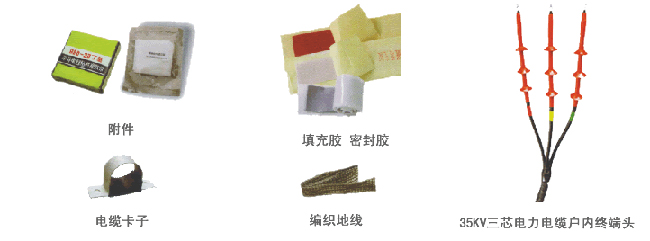

Heat shrinkable power cable terminal head, the middle joint (NSY, WSY, JSY 35KV

Main Products Parameter

Project	Parameters
Wet power frequency withstand voltage test (external)	105KV
Dry power frequency withstand voltage test (internal)	105KV
Impulse withstand voltage test	250KV 1.2/50μs+10次
The DC voltage	156KV 15min
Power frequency withstand voltage test	140KV
Partial discharge test	≤10Pc(1.5Uo)

Product name	Model specification	The application of cable cross-sectional area （mm²）
Single core indoor cable terminal	NSY-35/1.1 NSY-25/1.2 NSY-35/1.3	50-120 150-240 300-500
Single core outdoor cable terminal	WSY-35/1.1 WSY-25/1.2 WSY-35/1.3	50-120 150-240 300-500
Single core cable intermediate joint	JSY-35/1.1 JSY-25/1.2 JSY-35/1.3	50-120 150-240 300-500
Three core indoor terminal	NSY-35/3.1 NSY-25/3.2 NSY-35/3.3	50-120 150-240 300-500
Three core cable outdoor terminal	WSY-35/3.1 WSY-25/3.2 WSY-35/3.3	50-120 150-240 300-500
Three core cable intermediate joint	JSY-35/3.1 JSY-25/3.2 JSY-35/3.3	50-120 150-240 300-500
