Heat Shrinkable Cable Accessaries

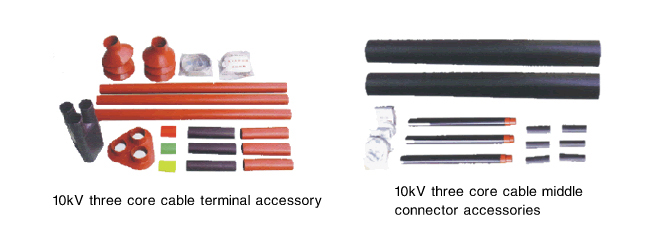

  • Heat shrinkable power cable terminal, middle joint of WSY, JSY, WSZ, NSZ...... 10KV
Heat shrinkable power cable terminal, middle joint of WSY, JSY, WSZ, NSZ...... 10KV

Heat shrinkable power cable terminal, middle joint of WSY, JSY, WSZ, NSZ...... 10KV

Product introduction:
Applicable to 6/10KV, 8.7/15KV polyethylene, cross-linked polyethylene, oil impregnated paper insulated single - core, the three core power cable.
Main technical parameters:

Project
Parameters
Wet power frequency withstand voltage test (external)
45KV 1min
Dry power frequency withstand voltage test (internal)
45KV 1min
Impulse withstand voltage test
105KV 1.2/50μs+10次
The DC voltage
52KV 15min
Power frequency withstand voltage test
35KV 4h
Partial discharge test
≤20Pc(1.5Uo)



Product name
Model specification
The application of cable cross-sectional area
（mm2）
Single core cable indoor terminal
NSY-10/1.1
NSY-10/1.2
NSY-10/1.3
NSY-10/1.4
25-50
70-120
150-240
300-500
Single core cable outdoor terminal
WSY-10/1.1
WSY-10/1.2
WSY-10/1.3
WSY-10/1.4
25-50
70-120
150-240
300-500
Single core cable intermediate joint
JSY-10/1.1
JSY-10/1.2
JSY-10/1.3
JSY-10/1.4
25-50
70-120
150-240
300-500
Three core cable indoor terminal
NSY-10/3.1
NSY-10/3.2
NSY-10/3.3
NSY-10/3.4
25-50
70-120
150-240
300-500
Three core cable outdoor terminal
WSY-10/3.2
WSY-10/3.2
WSY-10/3.3
WSY-10/3.4
25-50
70-120
150-240
300-500
Three core cable intermediate joint
JSY-10/3.1
JSY-10/3.2
JSY-10/3.3
JSY-10/3.4
25-50
70-120
150-240
300-500
Three core cable indoor oil terminal
NSZ-10/3.1
NSZ-10/3.2
NSZ-10/3.3
NSZ-10/3.4
25-50
70-120
150-240
300-500
Three core cable outdoor oil terminal
WSZ-10/3.1
WSZ-10/3.2
WSZ-10/3.3
WSZ-10/3.4
25-50
70-120
150-240
300-500
Three core oil middle joint
JSZ-10/3.1
JSZ-10/3.2
JSZ-10/3.3
JSZ-10/3.4
25-50
70-120
150-240
300-500
